ATR-7-NSP-DL

  • SERIES: ATR-7-NSP-DL
  • APERTURE: 7″
  • OPTICS:
  • LUMENS: 2100-6000 lm
  • CCT: 27K, 30K, 35K, 40K, 50K
  • CRI: 98+
  • RATING: Non-IC, New Construction

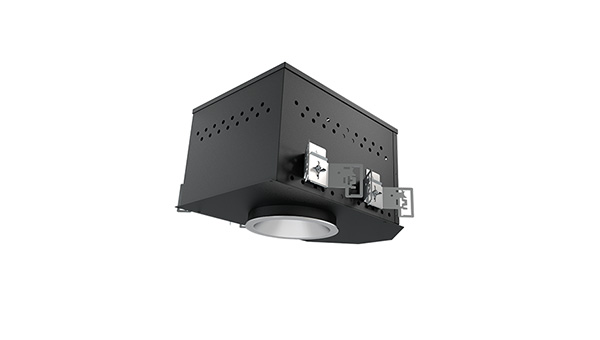

7″ Atrium Narrow Spot Downlight

Recessed High Lumen 9° LED Downlight for Multi-Storied Spaces

FEATURES:

Atrium is a family of high-lumen downlights, accent lights, and wallwashers designed for creating lasting first impressions in multistoried spaces.
– Signature glare-less anodized reflector achieves a 40° shielding angle
– Field-interchangeable internal ‘twist-and-lock’ reflector
– All Atrium NSP downlight configurations contribute toward earning points required for WELL Certification
– Notable Installations: Fulton St. Station in New York

ATR-CZS2-NSP-7DL

Standard

DESIGN TOOLS

LUMINAIRE CALCULATOR

AGI Calculator

Lumen Output



2100L
2700L
2800L
3000L
3600L
3900L
4000L
4500L
5100L
6000L

Color Temperature
2700K
3000K
3500K
4000K
5000K

Color Rendering
98+ CRI


Technologies

Static White

Driver Options



DIMTR

Tri-Mode Dimming™ (TRIAC, ELV & 0-10V)



DIM10

Flicker Free 1% DIM10 – 120 or 277V

Optical Distributions

9° NSP

Options



Emergency





Flanged



Reflector Finish Options

Semi Specular Clear

Slightly Diffused

Fully Diffused

Gold

Black

White
