ATRH-7-DL-F

  • SERIES: ATRH-7-DL-F
  • APERTURE: 7″
  • OPTICS: 15°, 21°, 38°
  • LUMENS: 6000-8000 lm
  • CCT: 27K, 30K, 35K, 40K, 50K
  • CRI: 98+
  • RATING: Non-IC, New Construction

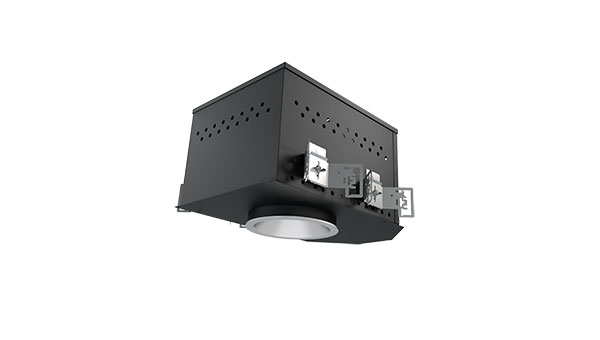

7″ Atrium High Lumen Downlight w/5° Diffuser

Recessed LED Downlight for Multi-Storied Spaces

FEATURES:

Atrium is a family of high-lumen downlights, accent lights, and wallwashers designed for creating lasting first impressions in multistoried spaces.
– Our signature anodized reflector, spun to a reverse parabola design, achieves a 40° shielding angle, eliminates inter-reflections, and enhances low aperture brightness
– Overall reflector design achieves a shielding angle of 40°
– Field-interchangeable internal ‘twist-and-lock’ reflector
– Select configurations can be implemented in WELL projects

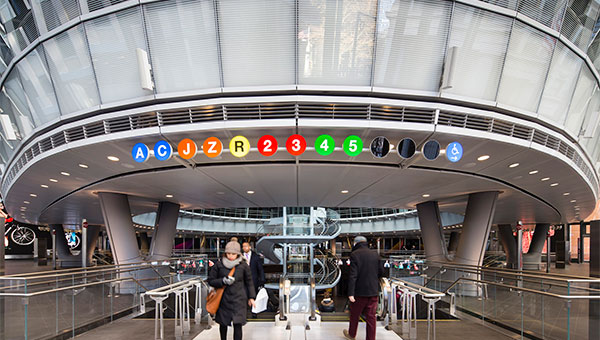

– Notable Installations: Fulton St. Station in New York

ATRH-CZL2-7DL-F

w/5° Diffuser

Lumen Output



6000L
8000L

Color Temperature
2700K
3000K
3500K
4000K
5000K

Color Rendering
98+ CRI


Technologies

Static White

Driver Options



ELDO10.1

0-10V ‘Dim-to-Dark’



ELDO10.1

0-10V ‘Dim-to-Dark’



ELDO10.1

0-10V ‘Dim-to-Dark’



ELDO10.1

0-10V ‘Dim-to-Dark’

Optical Distributions

15°

21°

38°

Options



Emergency





Flanged



Reflector Finish Options

Semi Specular Clear

Slightly Diffused

Fully Diffused

Gold

Black

White
