- SERIES: ATRH-7-DL
- APERTURE: 7″
- OPTICS: 15°, 21°, 38°
- LUMENS: 6000-8000 lm
- CCT: 27K, 30K, 35K, 40K, 50K
- CRI: 98+
- RATING: Non-IC, New Construction

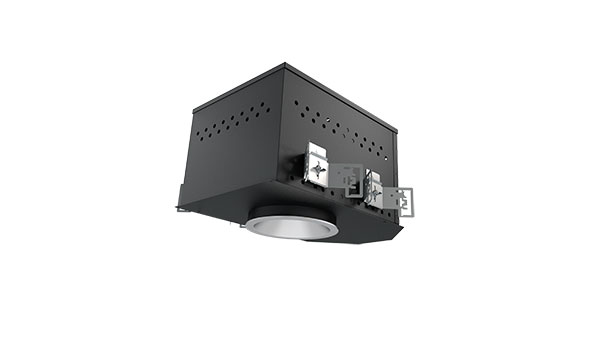

ATRH-7-DL
FEATURES:
Atrium is a family of high-lumen downlights, accent lights, and wallwashers designed for creating lasting first impressions in multistoried spaces.
– Our signature anodized reflector, spun to a reverse parabola design, achieves a 40° shielding angle, eliminates inter-reflections, and enhances low aperture brightness
– Overall reflector design achieves a shielding angle of 40°
– Field-interchangeable internal ‘twist-and-lock’ reflector
– Select configurations can be implemented in WELL projects

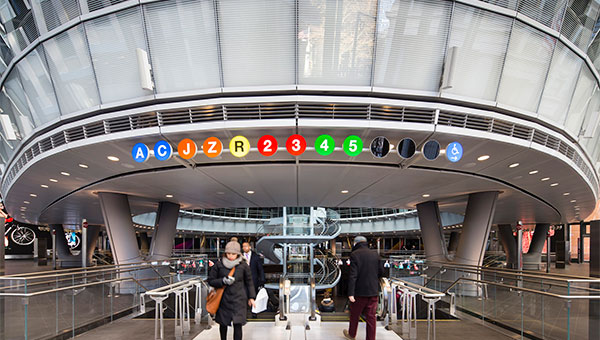

– Notable Installations: Fulton St. Station in New York
ATRH-CZL2-7DL
Standard
DESIGN TOOLS
LUMINAIRE CALCULATOR
Lumen Output
6000L
8000L
Color Temperature
2700K
3000K
3500K
4000K
5000K
Color Rendering
98+ CRI
Technologies
Static White
Driver Options
Optical Distributions
15°
21°
38°
Options
Reflector Finish Options
Semi Specular Clear
Slightly Diffused
Fully Diffused
Gold
Black
White
