EPIC-3-AA-ASP

  • SERIES: EPIC-3-AA-ASP
  • APERTURE: 3″
  • OPTICS: 36°, 54°
  • LUMENS: 700-1600 lm
  • CCT: 27K, 30K, 35K, 40K
  • CRI: 90+, 98+
  • RATING: New Construction, IC
  • LED SOURCE: Xicato

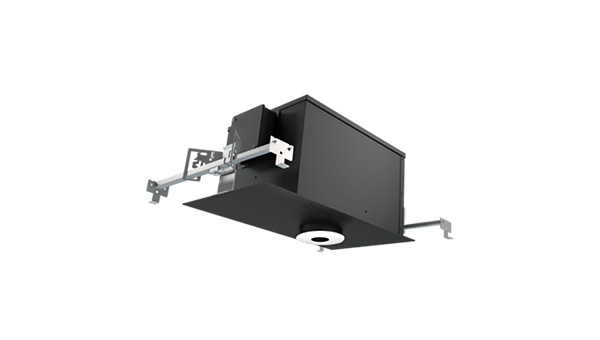

3″ IC Adjustable Accent Spot

Recessed LED Accent Light for Insulation Contact

FEATURES:

Luminaire designed for direct contact with insulation and certified airtight under ASTM E283. EPIC THREE AA provides smooth, glare-free accent lighting aimed at a precise position ideal for museums, hospitality, offices, and commercial spaces.
– Lockable Aiming: 363° horizontal rotation and 0-35° tilt, locking into place after achieving precise angle.
– Field-interchangeable internal ‘twist-and-lock’ reflector
– May be used in confidential spaces that must be soundproofed

EPIC-XTM-3AA

Xicato

Lumen Output



700L
1000L
1200L
1300L
1600L

Color Temperature
2700K
3000K
3500K
4000K

Color Rendering
90+ CRI
98+ CRI


Technologies

Static White

Lighting Solution

Driver Options



DALI-EL

DALI-2 ‘Dim-to-Dark’



DIMTR

Tri-Mode Dimming™ (TRIAC, ELV & 0-10V)



DIM10

Flicker Free 1% DIM10 – 120 or 277V



ELDO10.1

0-10V ‘Dim-to-Dark’



ELDO10.1

0-10V ‘Dim-to-Dark’

Optical Distributions

36°

54°

Options



Emergency





Flanged



Reflector Finish Options

Semi Specular Clear

Slightly Diffused

Fully Diffused

Gold

Black

White
