- SERIES: EPIC-3-WL
- APERTURE: 3″
- OPTICS: Wallwash
- LUMENS: 700-1600 lm
- CCT: 27K, 30K, 35K, 40K
- CRI: 90+, 98+
- RATING: IC, New Construction
- LED SOURCE: Xicato

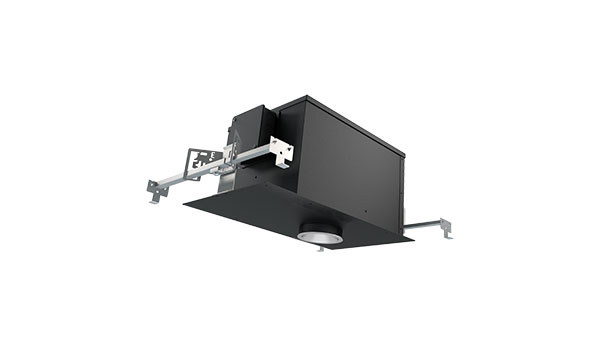

EPIC-3-WL
FEATURES:

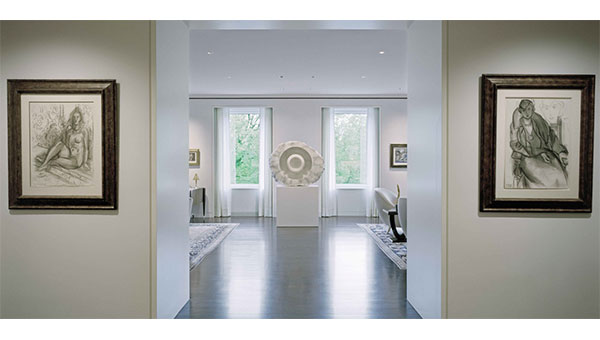

Luminaire designed for direct contact with insulation and certified airtight under ASTM E283. THREE WL features an optical assembly specially designed to extend the beam in two directions for a uniform floor-to-ceiling, side-to-side wash of light.
– Optical Assembly: internal reflector, a kicker reflector, and a 40° x 70° glass spread lens. Assembly may be rotated 363°, oriented as desired, and locked in place
– The internal reflector kicks light vertically up to the ceiling line and down, while the prismatic spread lens refracts scallop-free, multi-directional light
EPIC-XTM-3WL
Xicato
Lumen Output
700L
1000L
1200L
1300L
1600L
Color Temperature
2700K
3000K
3500K
4000K
Color Rendering
90+ CRI
98+ CRI
Technologies
Static White
Lighting Solution
Driver Options
Optical Distributions
Wallwash
Options
Reflector Finish Options
Semi Specular Clear
Slightly Diffused
Fully Diffused
Gold
Black
White
