- SERIES: EPIC-4-AA-ASL
- APERTURE: 4″
- OPTICS: 15°, 20°, 31°, 40°, 56°, 60°
- LUMENS: 700-2700 lm
- CCT: 27K, 30K, 35K, 40K, 50K
- CRI: 90+, 98+
- RATING: New Construction, IC
- LED SOURCE: Xicato

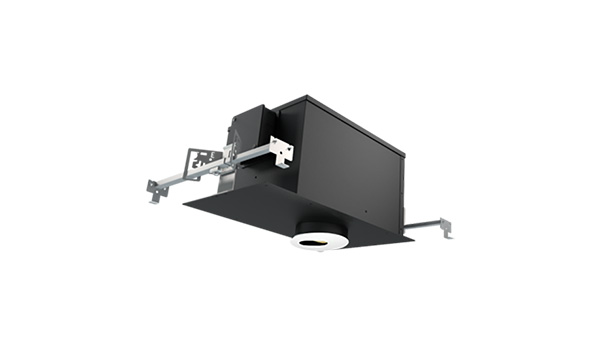

EPIC-4-AA-ASL
FEATURES:

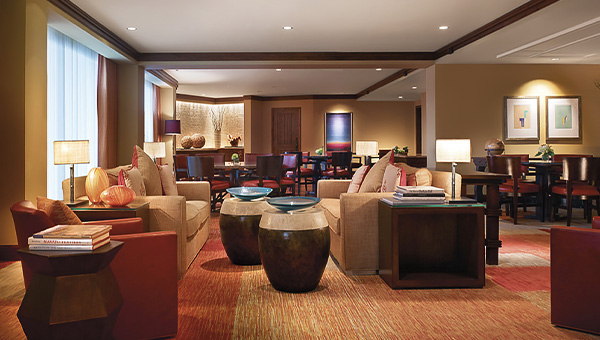

Luminaire designed for direct contact with insulation and certified airtight under ASTM E283. EPIC FOUR Hi AA provides smooth, glare-free accent lighting aimed at a precise position ideal for museums, hospitality, offices, and commercial spaces.
– Lockable Aiming: 363° horizontal rotation and 0-35° tilt, locking into place after achieving precise angle
– Field-interchangeable internal ‘twist-and-lock’ reflector
– May be used in confidential spaces that must be soundproofed, such as law offices and executive conference room
EPIC-XTM-4AA
Xicato
EPIC-CZS2-4AA
Standard
DESIGN TOOLS
LUMINAIRE CALCULATOR
Lumen Output
700L
1000L
1200L
1300L
1500L
1600L
1700L
1900L
2100L
2300L
2700L
Color Temperature
2700K
3000K
3500K
4000K
5000K
Color Rendering
90+ CRI
98+ CRI
Technologies
Static White
Lighting Solution
Driver Options
Optical Distributions
15°
20°
31°
40°
56°
60°
Options
Reflector Finish Options
Semi Specular Clear
Slightly Diffused
Fully Diffused
Gold
Black
White
