EPIC-5-WL

  • SERIES: EPIC-5-WL
  • APERTURE: 5″, 6″
  • OPTICS: Wallwash
  • LUMENS: 700-2700 lm
  • CCT: 27K, 30K, 35K, 40K, 50K
  • CRI: 90+, 98+
  • RATING: New Construction, IC
  • LED SOURCE: Xicato
SKU: 2d97b17cca02 Categories: , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , Tags: , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

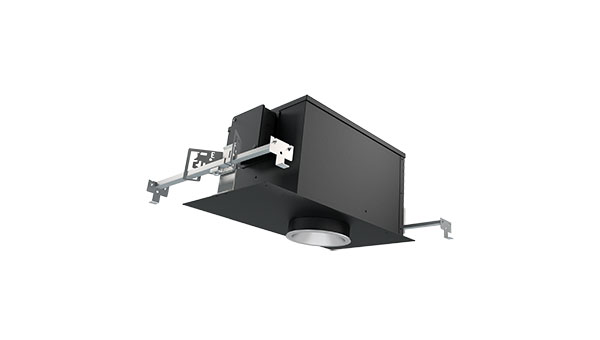

5″ IC Wallwash

Recessed LED Lensed Wallwasher for Insulation Contact

FEATURES:

Luminaire designed for direct contact with insulation and certified airtight under ASTM E283. FIVE Hi WL features an optical assembly specially designed to extend the beam in two directions for a uniform floor-to-ceiling, side-to-side wash of light.
– Optical Assembly: internal reflector, a kicker reflector, and a 40° x 70° glass spread lens. Assembly may be rotated 363°, oriented as desired, and locked in place
– The internal reflector kicks light vertically up to the ceiling line and down, while the prismatic spread lens refracts scallop-free, multi-directional light

EPIC-CZS2-5WL

Standard

EPIC-XTM-5WL

Xicato

DESIGN TOOLS

LUMINAIRE CALCULATOR

AGI Calculator

Lumen Output



700L
1000L
1200L
1300L
1500L
1600L
1700L
1900L
2100L
2300L
2700L

Color Temperature
2700K
3000K
3500K
4000K
5000K

Color Rendering
90+ CRI
98+ CRI


Technologies

Static White

Lighting Solution

Driver Options



DALI-EL

DALI-2 ‘Dim-to-Dark’



DIMTR

Tri-Mode Dimming™ (TRIAC, ELV & 0-10V)



DIM10

Flicker Free 1% DIM10 – 120 or 277V



ELDO10.1

0-10V ‘Dim-to-Dark’



ELDO10.1

0-10V ‘Dim-to-Dark’



ELDODMX.1

DMX ‘Dim-to-Dark’

Optical Distributions

Wallwash

Options



Emergency





Flanged



Reflector Finish Options

Semi Specular Clear

Slightly Diffused

Fully Diffused

Gold

Black

White
