4″ IC Wallwash

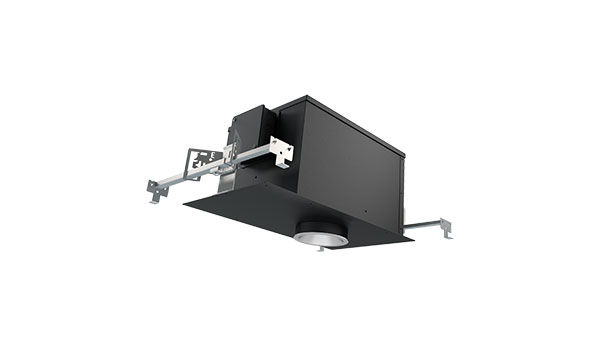

FTF Recessed LED Lensed Wallwasher for Insulation Contact

FEATURES:

Luminaire designed for direct contact with insulation and certified airtight under ASTM E283. EPIC FTF WL provides a uniform floor-to-ceiling and side-to-side wash of light, achieved through an optical assembly specially designed to bend light, throwing the beam in multiple directions.
– An internal kicker reflector kicks light vertically up to the ceiling line and down and a 40° x 70° glass spread lens refracts multi-directional light through a prismatic design without creating any visible scallops
– May be used in confidential spaces that must be soundproofed

EPIC-FTF-4WL

Standard

Lumen Output



1100L
1500L
2000L

Color Temperature
2700K
3000K
3500K
4000K

Color Rendering
90+ CRI


Technologies

Static White

Driver Options



LUTRON

Hi-lume 1% 2-Wire Forward-Phase Control



DIM10

Flicker Free 1% DIM10 – 120 or 277V



ELDO10.1

0-10V ‘Dim-to-Dark’



ELDO10.1

0-10V ‘Dim-to-Dark’



HILUME

Hi-lume 1% EcoSystem w/Soft-on, Fade-to-Black

Optical Distributions

Wallwash

Options



Emergency





Flanged



Reflector Finish Options

Semi Specular Clear

Slightly Diffused

Gold

Black
