FH-4-AA-ASL

  • SERIES: FH-4-AA-ASL
  • APERTURE: 4″
  • OPTICS: 15°, 20°, 31°, 40°, 56°, 60°
  • LUMENS: 1000-4000 lm
  • CCT: 27K, 30K, 35K, 40K, 50K
  • CRI: 90+, 98+
  • RATING: Non-IC, New Construction
  • LED SOURCE: Xicato
SKU: ce1bf9f666d5 Categories: , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , Tags: , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

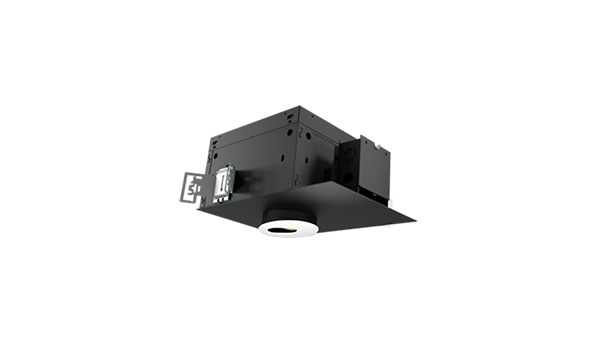

4″ High Lumen Adjustable Accent Slot

Four Hi Recessed LED Accent Light

FEATURES:

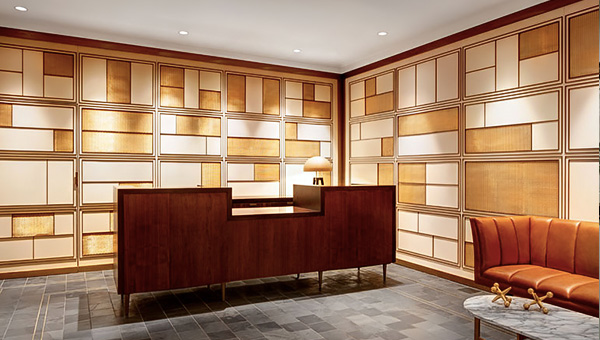

Highlight the architectural beauty of lobbies, lofts, and other high-ceiling spaces with Four Hi and Five Hi AA, a family of precise, low aperture brightness accent lights.
– Lumen packages up to 5100 lumens
– Lockable Aiming: 363° horizontal rotation and 0-35° tilt, locking into place after achieving precise angle
– Field-interchangeable internal ‘twist-and-lock’ reflector
– Beams as tight as 15°, achieving up to 28,817 CBCP
– Select configurations can be implemented in WELL projects

FH-XTM-4AA

Xicato

DESIGN TOOLS

LUMINAIRE CALCULATOR

AGI Calculator

Lumen Output



1000L
1300L
1500L
1600L
1700L
1900L
2100L
2300L
2700L
2800L
3000L
3100L
3400L
3600L
4000L

Color Temperature
2700K
3000K
3500K
4000K
5000K

Color Rendering
90+ CRI
98+ CRI


Technologies

Static White

Lighting Solution

Driver Options



DALI-EL

DALI-2 ‘Dim-to-Dark’



DIMTR

Tri-Mode Dimming™ (TRIAC, ELV & 0-10V)



DIM10

Flicker Free 1% DIM10 – 120 or 277V



ELDO10.1

0-10V ‘Dim-to-Dark’



ELDO10.1

0-10V ‘Dim-to-Dark’



ELDODMX.1

DMX ‘Dim-to-Dark’

Optical Distributions

15°

20°

31°

40°

56°

60°

Options



Emergency





Flanged





Trimless



Reflector Finish Options

Semi Specular Clear

Slightly Diffused

Fully Diffused

Gold

Black

White
