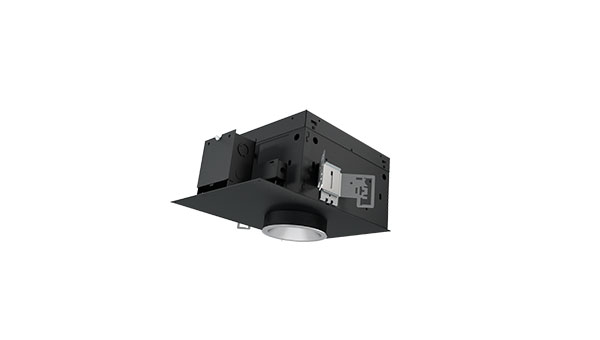

- SERIES: FH-5-DL
- APERTURE: 5″, 6″
- OPTICS: 20°, 31°, 40°, 56°, 60°
- LUMENS: 1000-5100 lm
- CCT: 27K, 30K, 35K, 40K, 50K
- CRI: 90+, 98+
- RATING: Non-IC, New Construction
- LED SOURCE: Xicato
FH-5-DL
FEATURES:

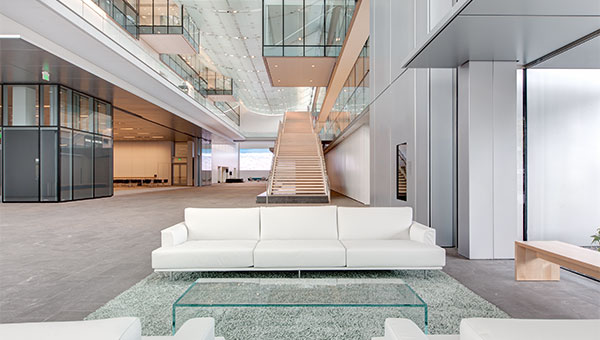

Highlight the architectural beauty of lobbies, lofts, and other high-ceiling spaces with Four Hi and Five Hi DL, a family of high-lumen low aperture brightness downlights.
– Our signature anodized reflector, spun to a reverse parabola design, achieves a 40° shielding angle, eliminates inter-reflections, and enhances low aperture brightness
– Select configurations can be implemented in WELL projects
FH-CZS2-DL-5
Standard – w/Lens Holder
FH-XTM-5DL
Xicato – w/Lens Holder
FH-CZS2-DG-5
Standard – No Lens Holder
FH-XTM-5DG
Xicato – No Lens Holder
DESIGN TOOLS
LUMINAIRE CALCULATOR
Lumen Output
1000L
1300L
1500L
1600L
1700L
1900L
2100L
2300L
2700L
2800L
3000L
3100L
3400L
3600L
3900L
4000L
4400L
5100L
Color Temperature
2700K
3000K
3500K
4000K
5000K
Color Rendering
90+ CRI
98+ CRI
Technologies
Static White
Lighting Solution
Driver Options
Optical Distributions
20°
31°
40°
56°
60°
Options
Reflector Finish Options
Semi Specular Clear
Slightly Diffused
Fully Diffused
Gold
Black
White
