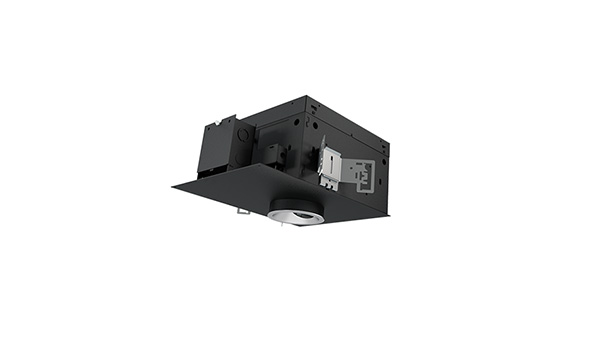

- SERIES: FH-NSP-5-AA
- APERTURE: 5″, 6″
- OPTICS: 10°, 24°
- LUMENS: 700-2000 lm
- CCT: 27K, 30K, 35K, 40K
- CRI: 90+, 98+
- RATING: Non-IC, New Construction
- LED SOURCE: Xicato
FH-NSP-5-AA
FEATURES:

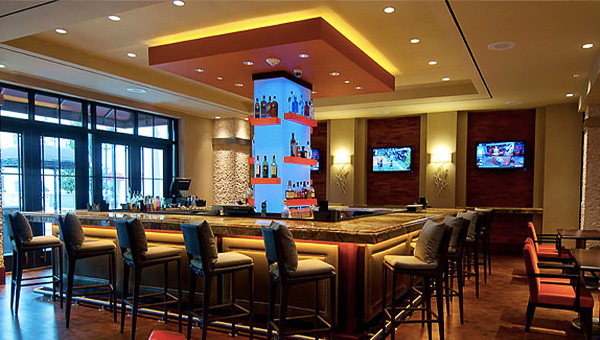

Illuminate key architectural facets with Four Hi and Five Hi narrow spots—delivering a tightly focused, long throw of light while maintaining low aperture brightness.
– Combine with downlights, accents, and wallwashers for multi-functional illumination with uniform performance and look
– Lockable Aiming: Provides 363° horizontal rotation and 0-35° tilt. Can be locked into place after achieving precise angle
– Field-interchangeable internal ‘twist-and-lock’ reflector
– Convert to a downlight in the field by re-setting the tilt yoke and swapping in an optional 0° cut reflector
FH-XTS-5AA
Xicato
DESIGN TOOLS
LUMINAIRE CALCULATOR
Lumen Output
700L
1000L
1300L
1800L
2000L
Color Temperature
2700K
3000K
3500K
4000K
Color Rendering
90+ CRI
98+ CRI
Technologies
Static White
Lighting Solution
Driver Options
Optical Distributions
10° NSP
24°
Options
Reflector Finish Options
Semi Specular Clear
Slightly Diffused
Fully Diffused
Gold
Black
White
