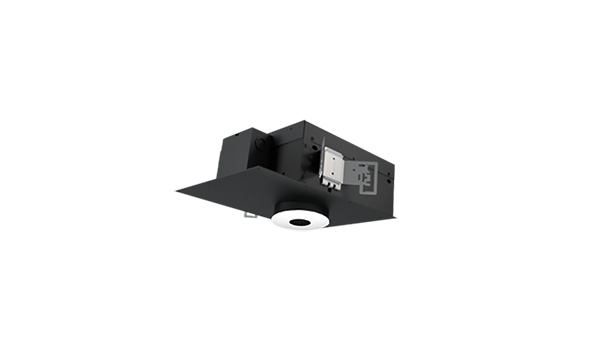

FR-DL-DSP
FEATURES:
Available in a wide range of beam angles from very narrow spot to wide flood, and a high-lumen line for use with ceiling heights up to 18’. Three Four Five is the most extensive family of round or square luminaires for downlight, accent, wallwash and specialty applications.
– Up to 98 CRI, 1×2 Step MacAdam Ellipse
– Field-interchangeable internal ‘twist-and-lock’ reflector
FR-XTM-DL
Xicato – w/Lens Holder
FR-XTM-DG
Xicato – No Lens Holder
DESIGN TOOLS
LUMINAIRE CALCULATOR
Lumen Output
700L
1000L
1300L
1600L
2000L
Color Temperature
2700K
3000K
3500K
4000K
Color Rendering
90+ CRI
98+ CRI
Technologies
Static White
Lighting Solution
Driver Options
Optical Distributions
36°
54°
Options
Reflector Finish Options
Semi Specular Clear
Slightly Diffused
Fully Diffused
Black
White
