P3-WL

  • SERIES: P3-WL
  • APERTURE: 3″
  • OPTICS: Wallwash
  • LUMENS: 700-1600 lm
  • CCT: 27K, 30K, 35K, 40K
  • CRI: 90+, 98+
  • RATING: Non-IC, New Construction
  • LED SOURCE: Xicato

IES

SPEC

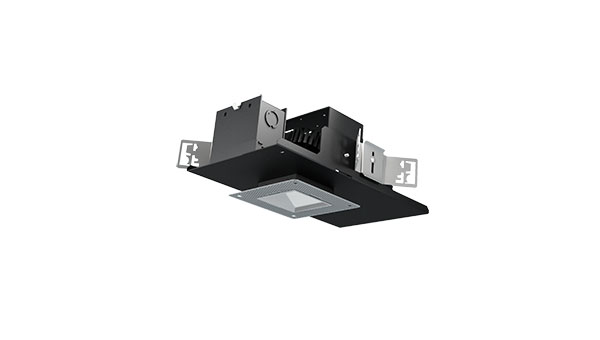

3″ Trimless Wallwash

Prim Square Recessed LED Wallwasher

FEATURES:

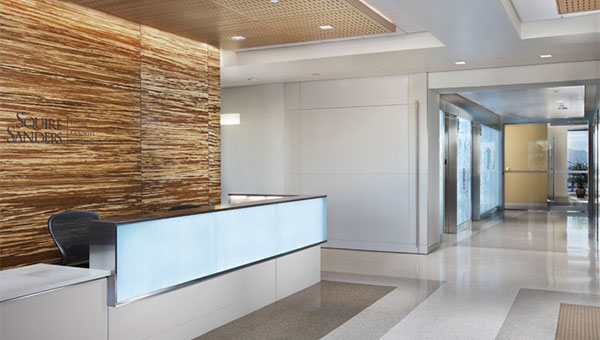

By eliminating glare, Prim Square creates seamless, quiet ceilings ideal for well-designed interiors. The precisely cut, Square conforms to formal architecture for a contemporary ceiling.
– A glare-less anodized reflector spun to a reverse parabola design eliminates inter-reflections,enhances low aperture brightness, and achieves a 40° shielding angle
– Optical assembly includes an internal reflector and a diffuser. Assembly is capable of full 365° horizontal rotation
– Luminaire is fully serviceable from below

P3-XTM-WL

Xicato

DESIGN TOOLS

LUMINAIRE CALCULATOR

AGI Calculator

Lumen Output



700L
1000L
1300L
1400L
1600L

Color Temperature
2700K
3000K
3500K
4000K

Color Rendering
90+ CRI
98+ CRI


Technologies

Static White

Lighting Solution

Driver Options



DALI-EL

DALI-2 ‘Dim-to-Dark’



DIMTR

Tri-Mode Dimming™ (TRIAC, ELV & 0-10V)



DIM10

Flicker Free 1% DIM10 – 120 or 277V



ELDO10.1

0-10V ‘Dim-to-Dark’



ELDO10.1

0-10V ‘Dim-to-Dark’



ELDODMX.1

DMX ‘Dim-to-Dark’

Optical Distributions

Wallwash

Options



Emergency





Trimless



Reflector Finish Options

Slightly Diffused

Fully Diffused

Black

White
