P4-AA

  • SERIES: P4-AA
  • APERTURE: 4″
  • OPTICS: 36°, 54°
  • LUMENS: 700-2500 lm
  • CCT: 27K, 30K, 35K, 40K
  • CRI: 90+, 98+
  • RATING: Non-IC, New Construction
  • LED SOURCE: Xicato

REVIT

IES

SPEC

SKU: 6711ac59a9e2 Categories: , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , Tags: , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

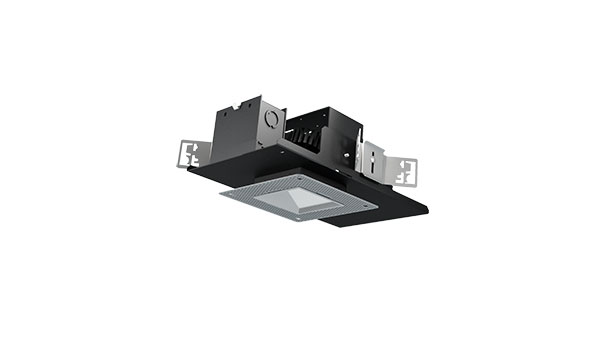

4″ Trimless Adjustable

Prim Square Recessed LED Accent Light

FEATURES:

By minimizing glare, Prim Square creates seamless, quiet ceilings ideal for well-designed interiors. The precisely cut, Square conforms to formal architecture for a contemporary ceiling.
– A glare-less anodized reflector spun to a reverse parabola design eliminates inter-reflections,enhances low aperture brightness, and achieves a 40° shielding angle
– Luminaire is fully serviceable from below
– Lockable Aiming: Provides 365° horizontal rotation and 0-30° tilt, locking into place after achieving precise angle

DESIGN TOOLS

LUMINAIRE CALCULATOR

AGI Calculator

Lumen Output



700L
1000L
1300L
1400L
1600L
2100L
2500L

Color Temperature
2700K
3000K
3500K
4000K

Color Rendering
90+ CRI
98+ CRI


Technologies

Static White

Lighting Solution

Driver Options



DALI-EL

DALI-2 ‘Dim-to-Dark’



DIMTR

Tri-Mode Dimming™ (TRIAC, ELV & 0-10V)



DIM10

Flicker Free 1% DIM10 – 120 or 277V



ELDO10.1

0-10V ‘Dim-to-Dark’



ELDO10.1

0-10V ‘Dim-to-Dark’



ELDODMX.1

DMX ‘Dim-to-Dark’

Optical Distributions

36°

54°

Options



Emergency





Trimless



Reflector Finish Options

Slightly Diffused

Fully Diffused

Black

White
