PST-4-AA-ES-DSP

  • SERIES: PST-4-AA-ES-DSP
  • APERTURE: 4″
  • OPTICS: 36°, 54°
  • LUMENS: 700-2700 lm
  • CCT: 27K, 30K, 35K, 40K
  • CRI: 90+, 98+
  • RATING: Non-IC, New Construction
  • LED SOURCE: Xicato
SKU: fb660cf4048d Categories: , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , Tags: , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

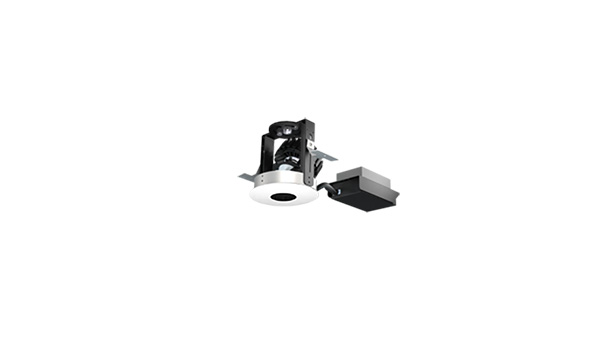

4″ Remodel Adjustable Downlight Spot

Presto Four Recessed LED Accent Light

FEATURES:

Presto Four LED AA is an install-from-below, lockable accent light with a remodel housing.
– Install-from-Below: Sturdy steel tabs lock frame into opening
– Lockable Aiming: 0-35° tilt and 50° horizontal rotation. Once focused, adjustment locks in place via a wing nut
– Identical Optical Performance: Luminaire employs our signature glare-less anodized reflector & ‘twist-and-lock’ field-interchangeable internal reflector
– 14-gauge electro-zinc steel frame construction (ASTM A879 certified for rust/corrosion-resistance)

PST-XTM-4AA-EE

Enhanced Efficacy

DESIGN TOOLS

LUMINAIRE CALCULATOR

AGI Calculator

Lumen Output



700L
1000L
1300L
1600L
2000L
2100L
2700L

Color Temperature
2700K
3000K
3500K
4000K

Color Rendering
90+ CRI
98+ CRI


Technologies

Static White

Lighting Solution

Driver Options



DALI-EL

DALI-2 ‘Dim-to-Dark’



DIMTR

Tri-Mode Dimming™ (TRIAC, ELV & 0-10V)



DIM10

Flicker Free 1% DIM10 – 120 or 277V



ELDO10.1

0-10V ‘Dim-to-Dark’



ELDO10.1

0-10V ‘Dim-to-Dark’

Optical Distributions

36°

54°

Options



Emergency





Trimless



Reflector Finish Options

Semi Specular Clear

Slightly Diffused

Fully Diffused

Gold

Black
