5″ Remodel Trimless Wallwash

Prestina Five Hi Recessed LED Wallwasher

FEATURES:

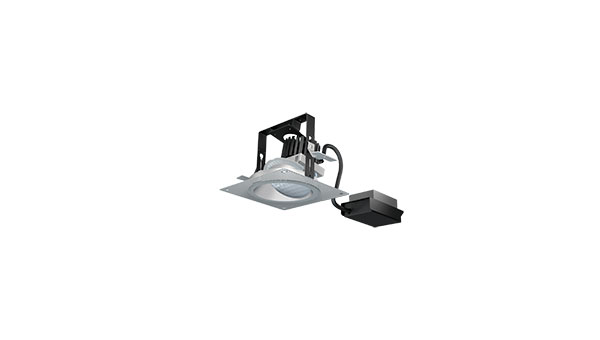

Prestina Five Hi LED WL is an install-from-below trimless wallwasher with a remodel housing designed for a flush trim detail.
– Presto/Prestina is a family of remodel downlights, accents, spots, and wallwashers identical to the standard series
– Install-from-Below: Sturdy steel tabs lock frame into opening
– Anodized reflector kicks light vertically up to the ceiling line and down, while the prismatic spread lens refracts scallop-free, multi-directional light
– 14-gauge electro-zinc steel frame construction

PST-XTM-5WL-TF

Xicato

DESIGN TOOLS

LUMINAIRE CALCULATOR

AGI Calculator

Lumen Output



1000L
1300L
1600L
2100L
2700L

Color Temperature
2700K
3000K
3500K
4000K

Color Rendering
90+ CRI
98+ CRI


Technologies

Static White

Lighting Solution

Driver Options



DALI-EL

DALI-2 ‘Dim-to-Dark’



DIMTR

Tri-Mode Dimming™ (TRIAC, ELV & 0-10V)



DIM10

Flicker Free 1% DIM10 – 120 or 277V



ELDO10.1

0-10V ‘Dim-to-Dark’



ELDO10.1

0-10V ‘Dim-to-Dark’

Optical Distributions

Wallwash

Options



Emergency





Trimless



Reflector Finish Options

Semi Specular Clear

Slightly Diffused

Fully Diffused

Gold

Black
