S4-NSP-AA

  • SERIES: S4-NSP-AA
  • APERTURE: 4″
  • OPTICS: 14°, 24°
  • LUMENS: 700-1300 lm
  • CCT: 27K, 30K, 35K, 40K
  • CRI: 90+, 98+
  • RATING: Non-IC, New Construction
  • LED SOURCE: Xicato

IES

SPEC

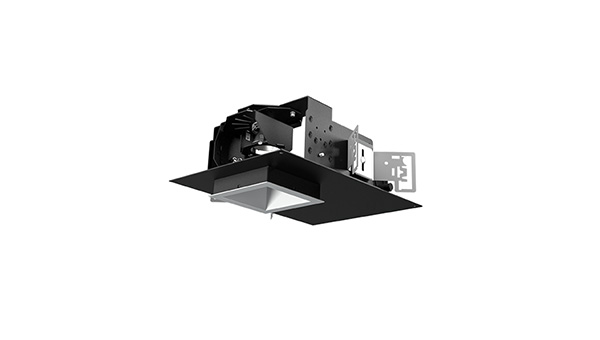

4″ Flanged Narrow Spot Adjustable

Square Recessed LED Accent Light

FEATURES:

Square NSP provides smooth, glare-free accent lighting that aims light at a precise position ideal for museums, art collections in upscale residences, hospitality, and offices. The precisely cut, Square conforms to formal architecture for a contemporary ceiling.
– A glare-less anodized reflector spun to a reverse parabola design eliminates inter-reflections,enhances low aperture brightness, and achieves a 40° shielding angle
– Lockable Aiming: 365° horizontal rotation and 0-35° tilt, locking into place after achieving precise angle

S4-XTS-AA

Xicato

DESIGN TOOLS

LUMINAIRE CALCULATOR

AGI Calculator

Lumen Output



700L
1000L
1300L

Color Temperature
2700K
3000K
3500K
4000K

Color Rendering
90+ CRI
98+ CRI


Technologies

Static White

Lighting Solution

Driver Options



DALI-EL

DALI-2 ‘Dim-to-Dark’



DIMTR

Tri-Mode Dimming™ (TRIAC, ELV & 0-10V)



DIM10

Flicker Free 1% DIM10 – 120 or 277V



ELDO10.1

0-10V ‘Dim-to-Dark’



ELDO10.1

0-10V ‘Dim-to-Dark’



ELDODMX.1

DMX ‘Dim-to-Dark’

Optical Distributions

14° NSP

24°

Options



Emergency





Flanged



Reflector Finish Options

Slightly Diffused

Gold

Black

White
