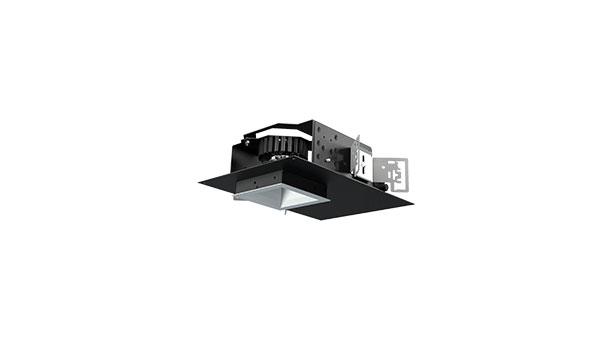

- SERIES: S5-DL
- APERTURE: 5″
- LUMENS: 1000-4000 lm
- CCT: 27K, 30K, 35K, 40K
- CRI: 90+, 98+
- RATING: Non-IC, New Construction
- LED SOURCE: Xicato
S5-DL
FEATURES:
The precisely cut, Square conforms to formal architecture for a contemporary ceiling.
– A glare-less anodized reflector spun to a reverse parabola design eliminates inter-reflections,enhances low aperture brightness, and achieves a 40° shielding angle
– Field-interchangeable internal ‘twist-and-lock’ reflector

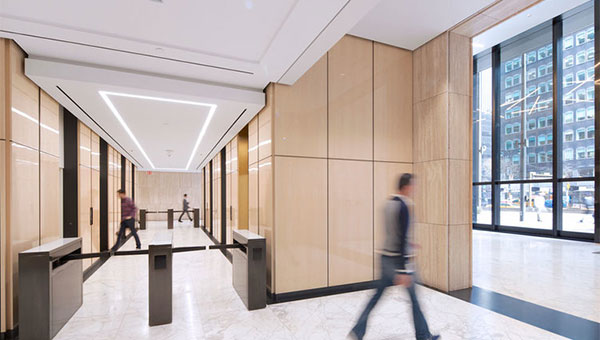

– High lumen packages up to 3500 lumens ideal for lobbies and other high-ceiling spaces
S5-XTM-DL
Xicato – w/Lens Holder
S5-XTM-DG
Xicato – No Lens Holder
DESIGN TOOLS
LUMINAIRE CALCULATOR
Lumen Output
1000L
1300L
1400L
1600L
2100L
2700L
3000L
4000L
Color Temperature
2700K
3000K
3500K
4000K
Color Rendering
90+ CRI
98+ CRI
Technologies
Static White
Lighting Solution
Driver Options
Optical Distributions
Options
Reflector Finish Options
Slightly Diffused
Gold
Black
White
