THR-WL

  • SERIES: THR-WL
  • APERTURE: 3″
  • OPTICS: Wallwash
  • LUMENS: 700-1600 lm
  • CCT: 27K, 30K, 35K, 40K
  • CRI: 90+, 98+
  • RATING: Non-IC, New Construction
  • LED SOURCE: Xicato
SKU: 48241b55e623 Categories: , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , Tags: , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

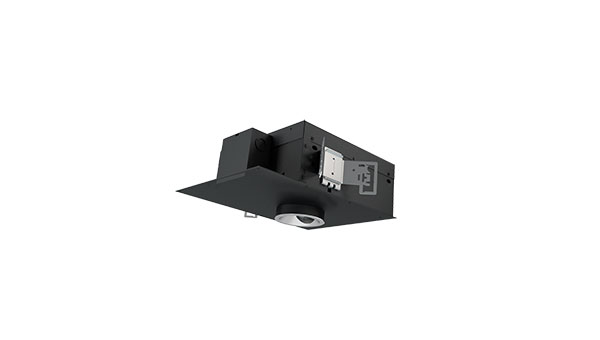

3″ Wallwash

THREE Recessed LED Lensed Wallwasher

FEATURES:

THREE WL is an unmatched wallwasher unlike any in the industry, featuring an optical assembly specially designed to extend the beam in two directions for a uniform floor-to-ceiling and side-to-side wash of light.
– Optical Assembly: internal reflector, a kicker reflector, and a 40° x 70° glass spread lens. Assembly may be rotated 363°, oriented as desired, and locked in place
– The internal reflector kicks light vertically up to the ceiling line and down, while the prismatic spread lens refracts scallop-free, multi-directional light

DESIGN TOOLS

LUMINAIRE CALCULATOR

AGI Calculator

Lumen Output



700L
1000L
1300L
1600L

Color Temperature
2700K
3000K
3500K
4000K

Color Rendering
90+ CRI
98+ CRI


Technologies

Static White

Lighting Solution

Driver Options



DALI-EL

DALI-2 ‘Dim-to-Dark’



LUTRON

Hi-lume 1% 2-Wire Forward-Phase Control



DIMTR

Tri-Mode Dimming™ (TRIAC, ELV & 0-10V)



DIM10

Flicker Free 1% DIM10 – 120 or 277V



ELDO10.1

0-10V ‘Dim-to-Dark’



ELDO10.1

0-10V ‘Dim-to-Dark’



ELDODMX.1

DMX ‘Dim-to-Dark’



HILUME

Hi-lume 1% EcoSystem w/Soft-on, Fade-to-Black

Optical Distributions

Wallwash

Options



Emergency





Flanged



Reflector Finish Options

Semi Specular Clear

Slightly Diffused

Fully Diffused

Black

White
