- SERIES: WP3CHP-NSP-AA
- APERTURE: 3″
- OPTICS: 12°, 20°, 36°
- LUMENS: 800-1500 lm
- CCT: 27K, 30K, 35K, 40K
- CRI: 90+
- RATING: CCEA, New Construction, Non-IC

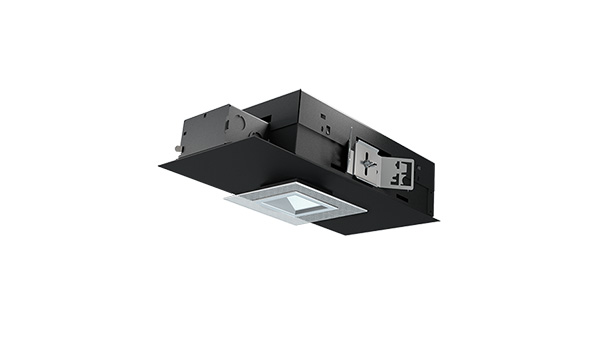

WP3CHP-NSP-AA
FEATURES:
The WAFER IC PRIM SQUARE AA has a precisely cut, trimless design ideal for contemporary ceilings.
– Designed for direct contact with insulation, certified airtight under ASTM E283
– Shallow 4 ¾” recess depth (3 ¾” housing depth, 1″ throat)
– Our signature anodized reflector, spun to a reverse parabola design, achieves a 40° shielding angle, eliminates inter-reflections, and enhances low aperture brightness
– Lockable Aiming: Provides 365° horizontal rotation and 0-30° tilt, locking into place after achieving precise angle
WP3CHP-CLT-AA
CCEA
DESIGN TOOLS
LUMINAIRE CALCULATOR
Lumen Output
800L
1000L
1200L
1500L
Color Temperature
2700K
3000K
3500K
4000K
Color Rendering
90+ CRI
Technologies
Static White
Driver Options
Optical Distributions
12° NSP
20°
36°
Options
Reflector Finish Options
Slightly Diffused
Fully Diffused
Black
White
