- SERIES: WP3IC-WL
- APERTURE: 3″
- LUMENS: 800-1200 lm
- CCT: 27K, 30K, 35K, 40K
- CRI: 90+
- RATING: New Construction, IC

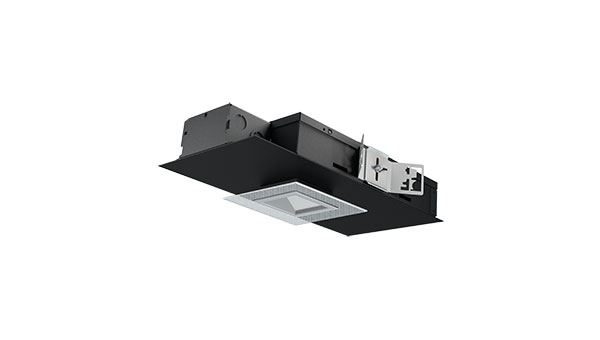

WP3IC-WL
FEATURES:
The WAFER IC PRIM SQUARE WL has a trimless design and an angular form that conforms to modern ceilings.
– Designed for direct contact with insulation, certified airtight under ASTM E283
– Shallow 3 ½” recess depth (2 ½” housing depth, 1″ throat)
– The optical assembly, an internal reflector and a 40° x 70° spread lens, delivers a uniform ceiling-to-floor wash of light
– Four-directional wallwash reflector allows fixture to be installed facing any direction
– May be used in confidential spaces that must be soundproofed
WP3IC-CLT-WL
Standard
DESIGN TOOLS
LUMINAIRE CALCULATOR
Lumen Output
800L
1000L
1200L
Color Temperature
2700K
3000K
3500K
4000K
Color Rendering
90+ CRI
Technologies
Static White
Driver Options
Optical Distributions
Options
Reflector Finish Options
Slightly Diffused
Fully Diffused
Black
White
