WPST-NSP-4-AA-ES-TF

  • SERIES: WPST-NSP-4-AA-ES-TF
  • APERTURE: 4″
  • OPTICS: 12°, 20°, 36°
  • LUMENS: 800-1800 lm
  • CCT: 27K, 30K, 35K, 40K
  • CRI: 90+
  • RATING: Non-IC, New Construction
SKU: 7955d71355e1 Categories: , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , Tags: , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

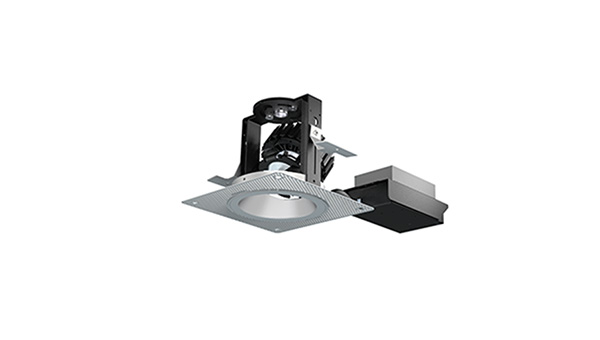

4″ Shallow Remodel Trimless Narrow Spot Adjustable

Prestina Wafer/4 Recessed LED Accent Light

FEATURES:

Presto Wafer/4 LED AA is an install-from-below, shallow accent light (4″ aperture, 5 ½” recess depth) with a remodel housing.
– Install-from-Below: Sturdy steel tabs lock frame into opening
– Lockable Aiming: Luminaire provides 365° horizontal rotation and 0-30° tilt. Once focused, adjustment can be locked in place via a lever and a thumb nut
– External anodized reflector minimizes aperture brightness
– Beams as tight as 12°, achieving up to 13,409 CBCP

PST-CLT-4-AA-TFR-ES

Enhanced Shielding

PST-CLT-4-AA-TFR-EE

Enhanced Efficacy

DESIGN TOOLS

LUMINAIRE CALCULATOR

AGI Calculator

Lumen Output



800L
1000L
1200L
1500L
1800L

Color Temperature
2700K
3000K
3500K
4000K

Color Rendering
90+ CRI


Technologies

Static White

Driver Options



DALI-EL

DALI-2 ‘Dim-to-Dark’



LUTRON

Hi-lume 1% 2-Wire Forward-Phase Control



DIMTR

Tri-Mode Dimming™ (TRIAC, ELV & 0-10V)



DIM10

Flicker Free 1% DIM10 – 120 or 277V



ELDO10.1

0-10V ‘Dim-to-Dark’



ELDO10.1

0-10V ‘Dim-to-Dark’



HILUME

Hi-lume 1% EcoSystem w/Soft-on, Fade-to-Black



ZIGBEE

ZigBee® CLM DIM Wireless

Optical Distributions

12° NSP

20°

36°

Options



Emergency





Trimless



Reflector Finish Options

Semi Specular Clear

Slightly Diffused

Fully Diffused

Gold

Black

White
