- SERIES: WPST-NSP-4-AA-ES
- APERTURE: 4″
- OPTICS: 12°, 20°, 36°
- LUMENS: 800-1800 lm
- CCT: 27K, 30K, 35K, 40K
- CRI: 90+
- RATING: Non-IC, New Construction
WPST-NSP-4-AA-ES
FEATURES:

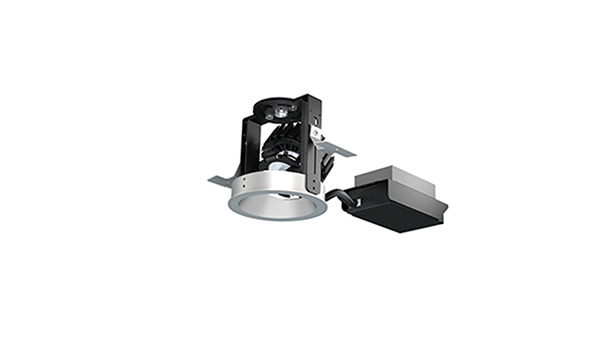

Presto Wafer/4 LED AA is an install-from-below, shallow accent light (4″ aperture, 5 ½” recess depth) with a remodel housing.
– Install-from-Below: Sturdy steel tabs lock frame into opening
– Lockable Aiming: Luminaire provides 365° horizontal rotation and 0-30° tilt. Once focused, adjustment can be locked in place via a lever and a thumb nut
– External anodized reflector minimizes aperture brightness
– Beams as tight as 12°, achieving up to 13,409 CBCP
PST-CLT-4-AA-ES
Enhanced Shielding
PST-CLT-4-AA-EE
Enhanced Efficacy
DESIGN TOOLS
LUMINAIRE CALCULATOR
Lumen Output
800L
1000L
1200L
1500L
1800L
Color Temperature
2700K
3000K
3500K
4000K
Color Rendering
90+ CRI
Technologies
Static White
Driver Options
Optical Distributions
12° NSP
20°
36°
Options
Reflector Finish Options
Semi Specular Clear
Slightly Diffused
Fully Diffused
Gold
Black
White
