- SERIES: WS3CHP-WL
- APERTURE: 3″
- LUMENS: 800-1500 lm
- CCT: 27K, 30K, 35K, 40K
- CRI: 90+
- RATING: CCEA, Non-IC, New Construction

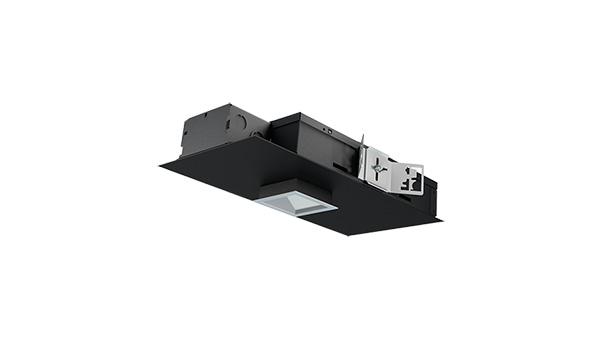

WS3CHP-WL
FEATURES:
The WAFER IC SQUARE WL conforms to formal architecture when seeking a more elevated, modern ceiling.
– Designed for direct contact with insulation, certified airtight under ASTM E283 The shallow 3″ housing depth and narrow width fits into constricted plenums in architectural spaces such as upscale residences, hotels, & restaurants.

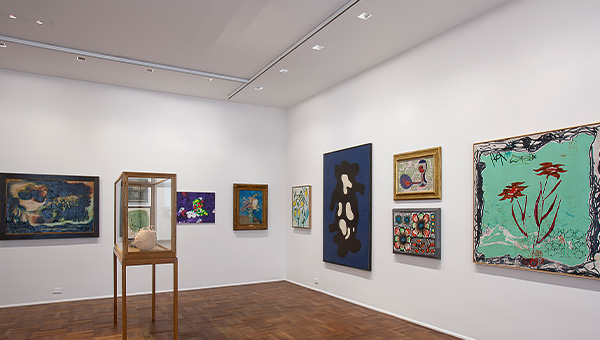

– The optical assembly, an internal reflector and a 40° x 70° spread lens, delivers a uniform ceiling-to-floor wash of light
– Four-directional wallwash reflector allows fixture to be installed facing any direction
– May be used in confidential spaces that must be soundproofed
WS3CHP-CLT-WL
CCEA
DESIGN TOOLS
LUMINAIRE CALCULATOR
Lumen Output
800L
1000L
1200L
1500L
Color Temperature
2700K
3000K
3500K
4000K
Color Rendering
90+ CRI
Technologies
Static White
Driver Options
Optical Distributions
Options
Reflector Finish Options
Slightly Diffused
Gold
Black
White
