- SERIES: WS3IC-DL
- APERTURE: 3″
- OPTICS: 32°, 60°
- LUMENS: 800-1200 lm
- CCT: 27K, 30K, 35K, 40K
- CRI: 90+
- RATING: New Construction, IC

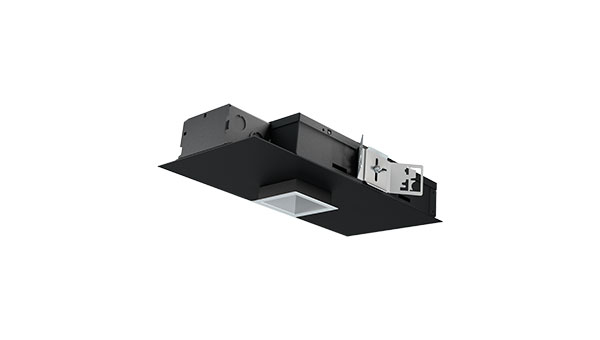

WS3IC-DL
FEATURES:
The WAFER IC SQUARE DL conforms to formal architecture when seeking a more elevated, modern ceiling. Luminaire is designed for direct contact with insulation, certified airtight under ASTM E283
– Shallow 2 ½” housing depth and narrow width fits into constricted plenums
– Our signature anodized reflector, spun to a reverse parabola design, achieves a 40° shielding angle, eliminates inter-reflections, and enhances low aperture brightness
– Field-interchangeable internal ‘twist-and-lock’ reflector
– May be used in confidential spaces that must be soundproofed
WS3IC-CLT-DL
Standard
DESIGN TOOLS
LUMINAIRE CALCULATOR
Lumen Output
800L
1000L
1200L
Color Temperature
2700K
3000K
3500K
4000K
Color Rendering
90+ CRI
Technologies
Static White
Driver Options
Optical Distributions
32°
60°
Options
Reflector Finish Options
Slightly Diffused
Gold
Black
White
