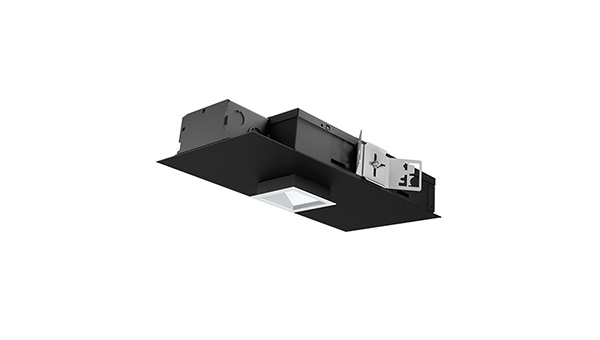

- SERIES: WS3IC-NSP-AA
- APERTURE: 3″
- OPTICS: 12°, 20°, 36°
- LUMENS: 800-1200 lm
- CCT: 27K, 30K, 35K, 40K
- CRI: 90+
- RATING: New Construction, IC
WS3IC-NSP-AA
FEATURES:
The WAFER IC SQUARE AA conforms to formal architecture when seeking a more elevated, modern ceiling.
– Designed for direct contact with insulation, certified airtight under ASTM E283
– Shallow 3″ housing depth and narrow width fits into constricted plenums
– Lockable Aiming: Provides 365° horizontal rotation and 0-30° tilt, locking into place after achieving precise angle
– Field-interchangeable internal ‘twist-and-lock’ reflector
– Beams as tight as 12°, achieving up to 12,200 CBCP
WS3IC-CLT-AA
Standard
DESIGN TOOLS
LUMINAIRE CALCULATOR
Lumen Output
800L
1000L
1200L
Color Temperature
2700K
3000K
3500K
4000K
Color Rendering
90+ CRI
Technologies
Static White
Driver Options
Optical Distributions
12° NSP
20°
36°
Options
Reflector Finish Options
Slightly Diffused
Gold
Black
White
