BOLD-4-SHAL-ADJ

  • SERIES: BOLD-4-SHAL-ADJ
  • APERTURE: 4″
  • OPTICS: 6°, 10°, 15°, 24°, 36°, 50°, 80°
  • LUMENS: 900-2000 lm
  • CCT: 27K, 30K, 35K, 40K, 50K, Dim To Warm
  • CRI: 90+, 98+
SKU: 921a1bd4d6cb Categories: , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , Tags: , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

4″ Architectural Shallow Adjustable Downlight

4″ Architectural Shallow Adjustable Round Downlight – Trim, Trimless & Millwork

FEATURES:

BOLD-4 Adjustable Accent is a specification-grade LED luminaire offering precision, flexibility, and visual comfort. With 365° rotation and 45° adjustability, it provides targeted illumination in any direction. Once adjusted, the system locks securely in place, ensuring consistent positioning. Hot aiming allows for real-time adjustments, even when powered on, offering maximum flexibility during operation. It also offers compatibility with a range of additional optical accessories, providing enhanced customization to suit specific design needs.
Available in three housing options—flanged, trimless, and millwork—BOLD-4 seamlessly integrates into a variety of ceiling designs. The luminaire features 98 CRI with 1×2 Step MacAdam Ellipse color consistency, ensuring superior optical quality. It supports dimming protocols down to 0.1%, allowing precise control over light levels.

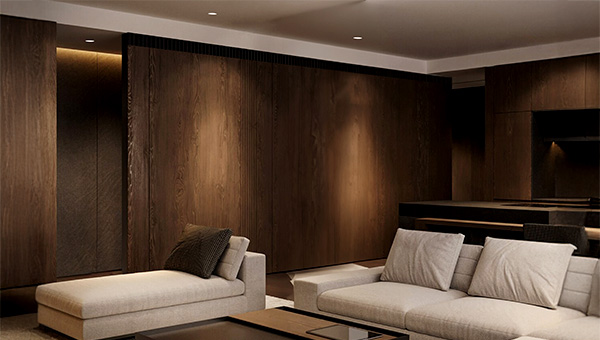

Perfect for commercial, hospitality, retail, institutional, cultural, corporate, academic, healthcare, luxury residential, gallery, and museum applications, BOLD-4 Adjustable Accent is ideal for highlighting architectural features and focal points with precision and elegance.
As part of the BOLD family, including downlight and wall wash options, BOLD-4 meets the evolving demands of modern lighting design with both static and dynamic color technologies.

Lumen Output



900L
1200L
1500L
2000L

Color Temperature
2700K
3000K
3500K
4000K
5000K
Dim To Warm

Color Rendering
90+ CRI
98+ CRI


Technologies

Dims to Warm
1800K-3000K

Static White

Bluetooth

Driver Options



A-WN-D01-RF-WH

Lutron Athena Wireless enabled with RF Node, 1%



BLE-CASAMBI

Luminaires may be controlled, grouped, scheduled or placed in scenes , and or zones Via Cassambi Bluetooth 4.0 App.”



DALI

EldoLED SoloDrive DALI-2. Dimming down to 0.1%



DIM10

0-10V dimming on either MVOLT 120, 277 or 347V. Dimmable down to 1% of initial lumens, standard



DIMTR

Triac & Electronic low voltage forwardp hase dimming. Available in 120V only



ELDO10-LOG

ELDO10-LOG with logarithmic dimming curve.



ELDO10.1-LIN

ELDO10-Linear with linear dimming curve.



ELDODALI.1

EldoLED SoloDrive DALI-2. Dimming down to 0.1%



LUTH

Lutron LDE1 Hi-Lume Eco System with Soft Fade to Black 1% dimming

Optical Distributions

10°

15°

24°

36°

50°

80°

Options



Emergency





Flanged





Trimless



Reflector Finish Options

Black

White
