- SERIES: STM-4-DL
- APERTURE: 4″
- LUMENS: 700-2700 lm
- CCT: 27K, 30K, 35K, 40K, 50K
- CRI: 90+, 98+
- RATING: Non-IC, New Construction
- LED SOURCE: Xicato

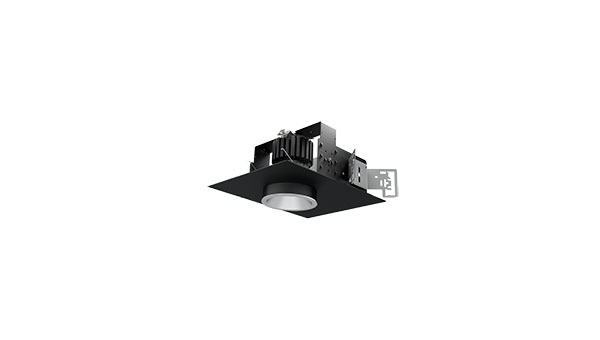

STM-4-DL
FEATURES:

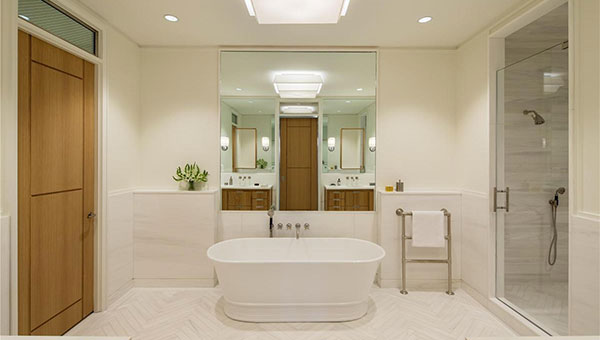

Illuminate spaces with high ambient temperatures up to 115°F (46°C), including steam rooms, showers, locker rooms, natatoriums, and spas.
– Deeply regressed light sources and protective lenses provide a comfortable shielding angle
– A 5/32″ thick glass Solite lens protects the LED from a direct spray of water
– Torsion springs pull the reflector flange tight to the ceiling
STM-XTM-4DL
Xicato
STM-CZS2-4DL
Standard
Lumen Output
700L
1000L
1300L
1500L
1600L
1700L
1900L
2000L
2100L
2300L
2700L
Color Temperature
2700K
3000K
3500K
4000K
5000K
Color Rendering
90+ CRI
98+ CRI
Technologies
Static White
Lighting Solution
Driver Options
Optical Distributions
Options
Reflector Finish Options
Semi Specular Clear
Slightly Diffused
Fully Diffused
Gold
Black
White
