BOLD-3S-SHAL-ADJ-IC

  • SERIES: BOLD-3S-SHAL-ADJ-IC
  • APERTURE: 3″
  • OPTICS: 10°, 15°, 24°, 36°, 60°
  • CCT: 27K, 30K, 35K, 40K, 50K, Dim To Warm, Tunable White, Vibrant
  • CRI: 90+, 95+, 98+
  • RATING: IC

3″ Architectural Adjustable Square Downlight

3″ Architectural Adjustable Square Downlight – Trim, Trimless & Millwork

FEATURES:

BOLD-3 Adjustable Accent is a specification-grade LED luminaire offering precision, flexibility, and visual comfort. With 365° rotation and 45° adjustability, it provides targeted illumination in any direction. Once adjusted, the system locks securely in place, ensuring consistent positioning. Hot aiming allows for real-time adjustments, even when powered on, offering maximum flexibility during operation. It also offers compatibility with a range of additional optical accessories, providing enhanced customization to suit specific design needs.
Available in three housing options—flanged, trimless, and millwork—BOLD-3 seamlessly integrates into a variety of ceiling designs. The luminaire features 98 CRI with 1×2 Step MacAdam Ellipse color consistency, ensuring superior optical quality. It supports dimming protocols down to 0.1%, allowing precise control over light levels.

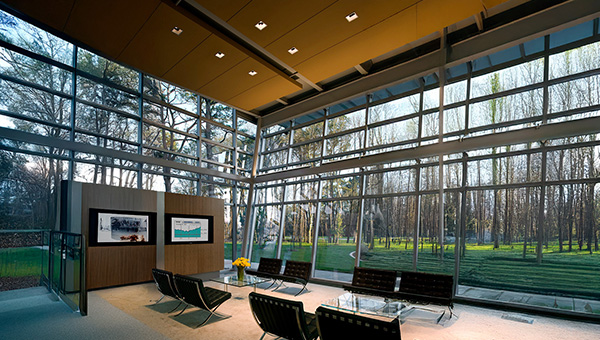

Perfect for commercial, hospitality, retail, institutional, cultural, corporate, academic, healthcare, luxury residential, gallery, and museum applications, BOLD-3 Adjustable Accent is ideal for highlighting architectural features and focal points with precision and elegance.
As part of the BOLD family, including downlight and wall wash options, BOLD-3 meets the evolving demands of modern lighting design with both static and dynamic color technologies.

BOLD-3S-SHAL-ADJ-IC

Lumen Output



Color Temperature
2700K
3000K
3500K
4000K
5000K
Dim To Warm
Tunable White
Vibrant

Color Rendering
90+ CRI
95+ CRI
98+ CRI


Technologies

Tunable White
2700K-5000K

Dims to Warm
1800K-3000K

Static White

Bluetooth

Driver Options



BLE-CASAMBI

Luminaires may be controlled, grouped, scheduled or placed in scenes , and or zones Via Cassambi Bluetooth 4.0 App.



DIM10

0-10V dimming on either MVOLT 120, 277 or 347V. Dimmable down to 1% of initial lumens, standard



DIM10-0-OFF

Program DIM10-to OFF withlinear dimming curve 0.1%



DIM10-AUX

0-10V with Auxiliry power



DIMTR

Triac & Electronic low voltage forwardp hase dimming. Available in 120V only



ELDO10-LOG

ELDO10-LOG with logarithmic dimming curve.



ELDO10.1-LIN

ELDO10-Linear with linear dimming curve.



ELDODALI.1

EldoLED SoloDrive DALI-2. Dimming down to 0.1%



ELDODMX.1

EldoLED PowerDrive dimming down to 0.1%. Please see EldoLED website for wiring diagrams and a list of compatible DMX and DALI control systems.



LUTFTB

Lutron PEQ0 Hi-Lume Premier Eco System LED Driver with soft-on fade to black 0.1% dimming



LUTH

Lutron LDE1 Hi-Lume Eco System with Soft Fade to Black 1% dimming



POE

Power-over-Ethernet Depending on the PoE manufacturer selected



XSR

Xitanium SR Dimming

Optical Distributions

10° NSP

15°

24°

36°

60°

Options



Emergency





Flanged





Trimless



Reflector Finish Options

Black

White
